Inverter Noise in Solar Parks: Why Treating the Source Beats Barriers

Intro

As utility-scale PV capacity grows, so do noise constraints — especially when solar parks are built closer to residential areas. In many projects, string inverter noise becomes a real commercial constraint that affects layout, cable runs, permitting, and neighbour acceptance.

The good news is that noise mitigation doesn't have to mean expensive barriers or large buffer zones. In many cases, the most efficient approach is simply:

Reduce noise at the source.

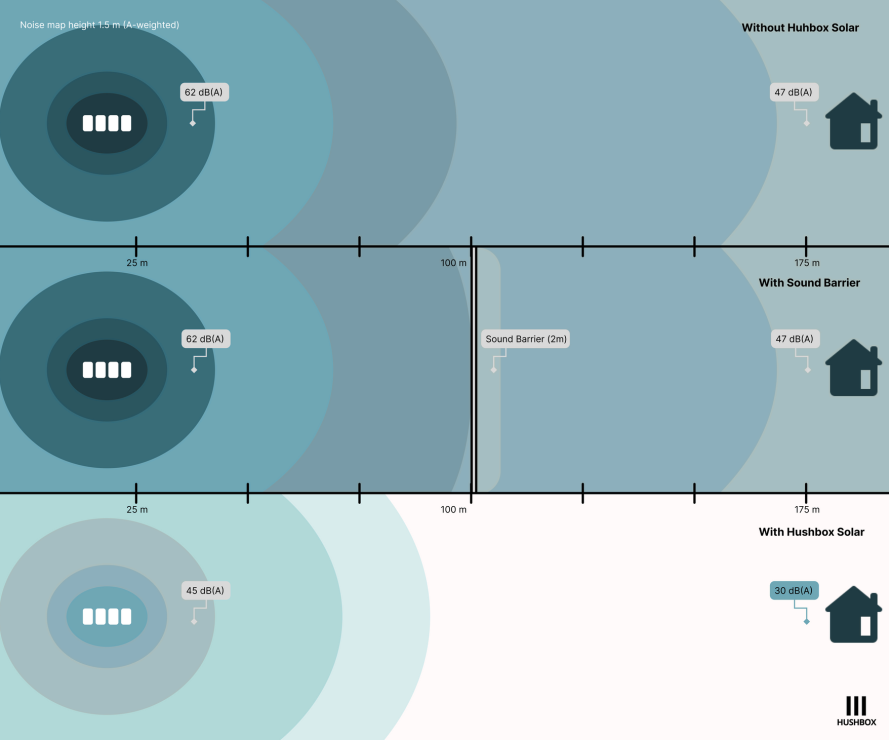

What the noise map shows

The figure compares three typical situations:

1) Without mitigation

Without mitigation, inverter noise spreads in a large footprint. Even at long distances, sound levels may remain high enough to trigger:

  • neighbour complaints,

  • extra modelling and documentation,

  • permit constraints,

  • or layout changes late in the project.

In the example, the level near the dwelling is shown around 47 dB(A).

2) With a traditional sound barrier

A barrier can help in some cases — but typically only in specific directions and with line-of-sight conditions. A barrier:

  • takes up space,

  • can complicate O&M access,

  • rarely reduces noise uniformly in all directions,

  • and may still leave the same overall "noise-driven layout constraint".

In the figure, the barrier does not significantly improve the far-field level at the dwelling.

3) With HushBox Solar (source enclosed)

When the inverter is enclosed, acoustic energy is contained before it propagates across the park. This reduces the overall footprint and typically creates a much smaller compliance radius.

In the figure, the level at the dwelling drops to around 30 dB(A) — a major improvement compared to both "no mitigation" and "barrier".

Why "reduce at the source" is often the best strategy

Traditional noise barriers focus on blocking noise after it has already spread. Source enclosures address noise before it leaves the inverter area.

Key advantages

  • Noise reduction: up to 19 dB(A) (project-specific)

  • 360° effect: reduces propagation in all directions

  • No redesign required: you don't need to change the PV layout to "work around" a barrier

  • Predictable permitting: smaller, clearer impact zones

  • Neighbour acceptance: lower levels at boundaries and dwellings

Performance and operations: what matters in real PV parks

Noise mitigation must not create new operational risks.

HushBox Solar is designed to reduce noise while maintaining inverter performance:

  • Optimized ventilation to maintain airflow and temperatures

  • Minimal energy use relative to inverter output

  • OEM warranty conditions remain intact (when installed according to requirements)

  • Service access: the inverter remains straightforward to access and maintain

  • Maintenance: does not add significant maintenance compared to the inverter itself

The planning benefit: better layouts in noise-sensitive areas

The biggest advantage often happens before construction.

Including noise mitigation early can unlock:

  • more flexible inverter placement,

  • shorter cable runs,

  • lower BOS costs,

  • fewer buffer zones,

  • fewer late-stage redesigns,

  • smoother permitting.

Noise shouldn't decide your park layout. Economics should.
Source mitigation helps you design the park for yield, logistics, and cost — while staying compliant.

Real-world deployment

HushBox Solar is already deployed in multiple Danish solar parks. The focus has been consistent: reduce inverter noise, keep performance unchanged, and simplify compliance in noise-sensitive locations.

When to consider a source enclosure

This approach is especially relevant if your project has:

  • residential neighbours nearby,

  • strict local noise limits,

  • planning uncertainty due to acoustic modelling,

  • layout compromises driven by noise,

  • community acceptance concerns.

Next step

If you are evaluating noise mitigation options for a solar park (new build or retrofit), we can support with:

  • technical information and data sheets,

  • layout-oriented noise strategy,

  • acoustic collaboration and site measurements (via partner acousticians),

  • project-specific discussions.


Contact us to discuss your site or request a technical overview.
